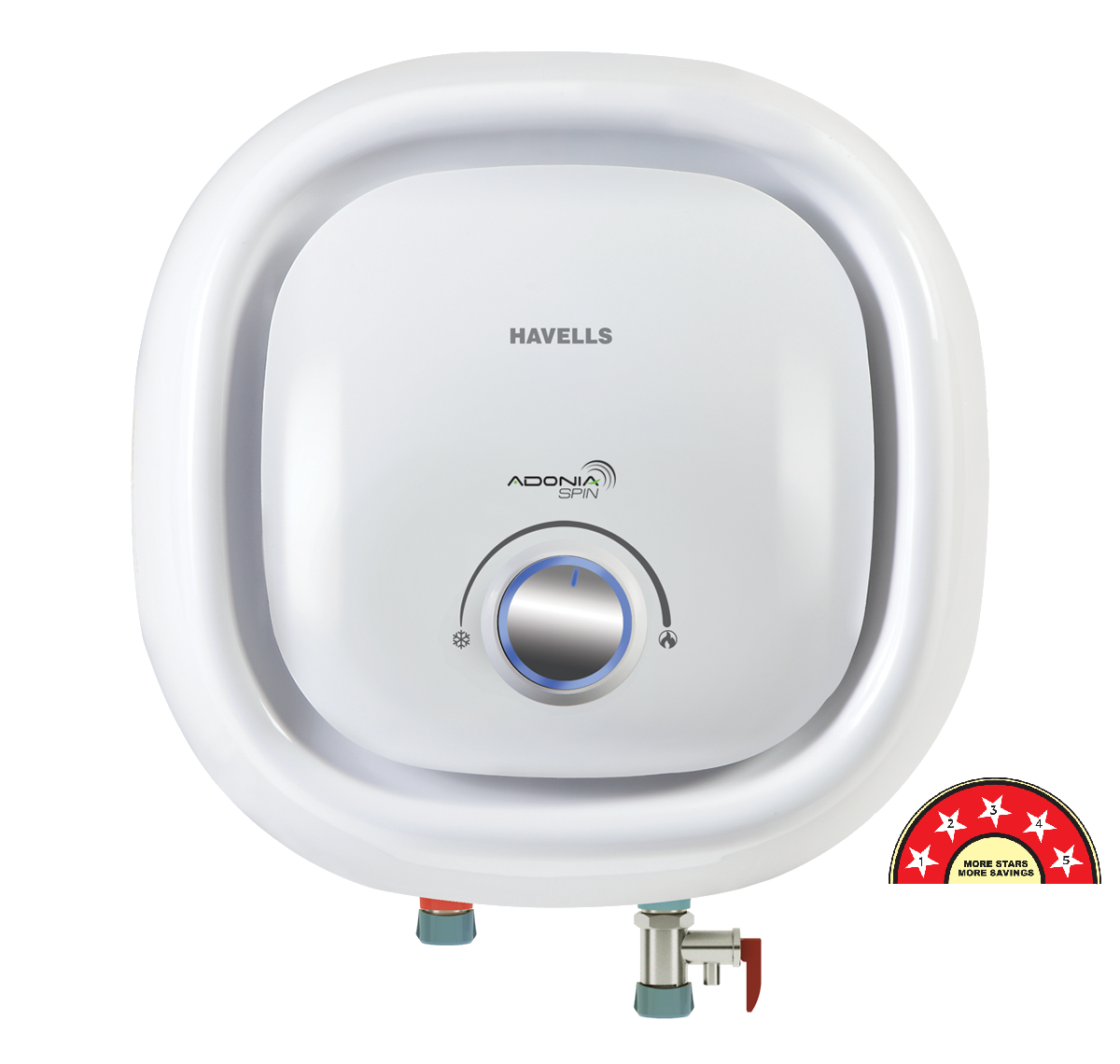

HAVELLS GEYSER ADONIA SPIN 10 L white

TECHNICAL SPECIFICATION

BASIC FEATURES

Rated capacity	10 L
Installation	Vertical
Color	White
Ideal for	Bathroom , High rise buildings
Remote controller	NO
Temperature setting	Manual
Temperature sensitive led indicators	YES
Whirl flow technology	Yes

PERFORMANCE FEATURES

Rated pressure	0.8 MPa
Standing loss in kWh / 24 h / 45 °C	0.365 kWh
Mixing factor maximum ( % )	30%
Reheating time in minutes to raise 50 °C	15 minutes

POWER DETAILS

Rated Power Input	2000 W
Rated input current	8.7 Ampere
BEE rating	5 Star
Energy efficiency feature	Energy saving high density PUF insulation
Rated voltage	230 V, 1 Phase, 50 Hz AC

DIMENSIONS WEIGHT

Height	390 mm
Width	390 mm
Breadth	319 mm
Packing dimensions LxWxH (cm)	43.5 cm x 42.5 cm x 36.5 cm
Weight when empty	9.1 kg

TANK FEATURES

Heating element	Incoloy 800 glass coated heating element offers superior heating performance and resistance to oxidation and carbonation at high temperatures
Tank material	Made of ultra thick super cold rolled steel plates
Tank finish and coating	Feroglas dry powder coating technology
Extreme hard water resistance	Yes
Anode rod rust and corrosion resistance	Heavy duty magnesioum anode rod woth steel core to protect enamelled tank from rust and corrosion

WARRANTY \ GUARANTEE

Tank Warranty	7 year
Body and electrical components Warranty	2 Year

SALES PACKAGE (S)

Net contents

1 N gesyer, 1 N Remote, 1 N manual , 1 N Wall mounting accessory & 2 N flexi pipe

SAFETY FEATURES

Thermostat	Yes
Electrical safety	Earth Leakage Current Breaker to cut off power immediately in case of current leakage and protect users from electric shock
Thermal cut off	Yes
Multifunctional safety valve	Yes
Geyser protection from water splash	IPX4 technology to protect electrical parts from water splash
